工業環?？照{(diào)可安裝在墻壁上，屋頂上或室外的地面上，安裝的位置最少不能低于2.25米。采用40*40*4支架與墻或窗板螺栓連接，且所有的縫隙均用玻璃膠或水泥砂漿密封。安裝風管時要在安裝的底架上安裝吊桿，使風管重量全部吊裝在底架上。

技術要求：

1、三角支架焊接和安裝要牢固;

2、檢修平臺必須能支撐機組和維修人員的重量;

3、主機安裝必須水平；

4、主機法蘭與送風彎管的截面必須平齊；

5、所有外墻風管都要做好防水處理；

6、主機接線盒必須靠室內安裝，便于維修；

7、風管彎頭近墻處要做防水處理，以防止水流入室內。

evaporative air cooler can be installed on the wall, roof and outdoor ground, the installation position area is not less than 2.25 square meters.The 40*40# bracket is connected with the wall or window by the bolt,there is a rubber pad between the elbow and bracket, and all cracks are sealed with a plastic glass or cement mortar. An steeve should installed on the bottom of the bracket when we install the elbow.

Technical requirements:

1.triangle bracket welded and installed should be secured ;

2.maintenance platform must be able to support the weight of the crew and maintenance personnel;

3.the host must be installed in a horizontal positon;

4.host junction and air pipe section must be installed in horizontal position; 5.all the exterior duct must be waterproofed;

6.hostjunction box must be indoor installation;

7.duce elbow into the wall should be waterproofed in order to prevent duct flow into the Interior;

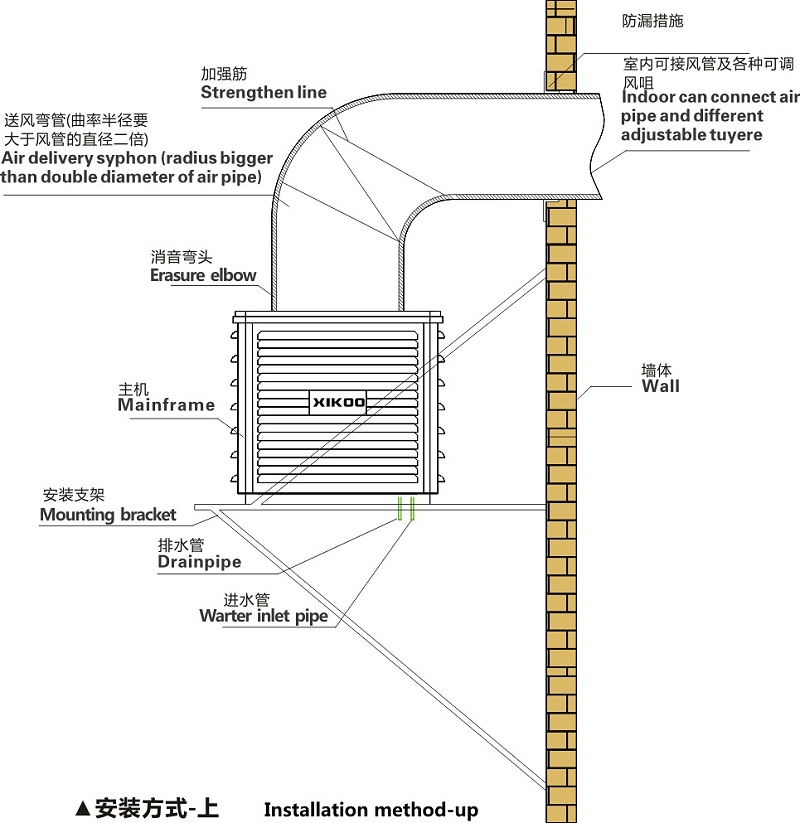

上出風安裝示意圖

Upward-Installation method

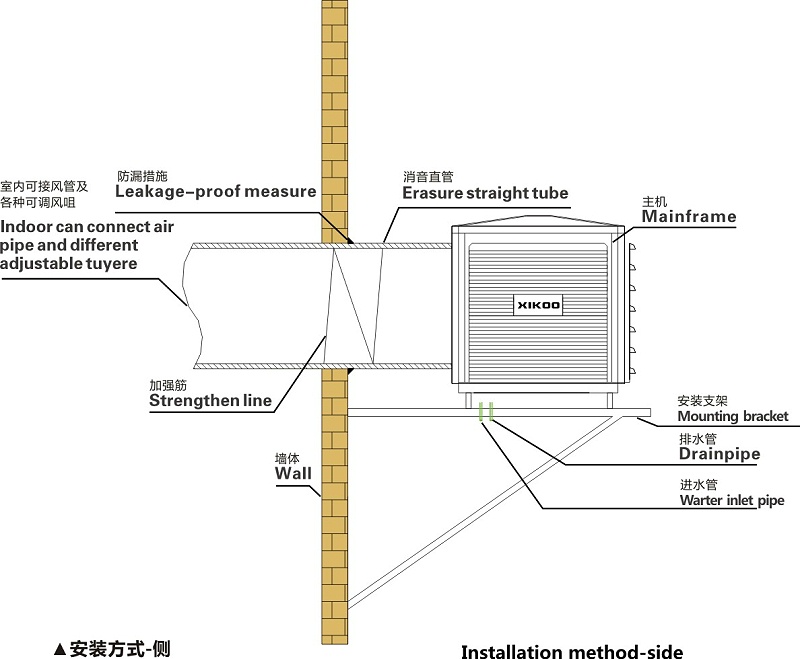

側出風安裝示意圖

Sideward-Installation method

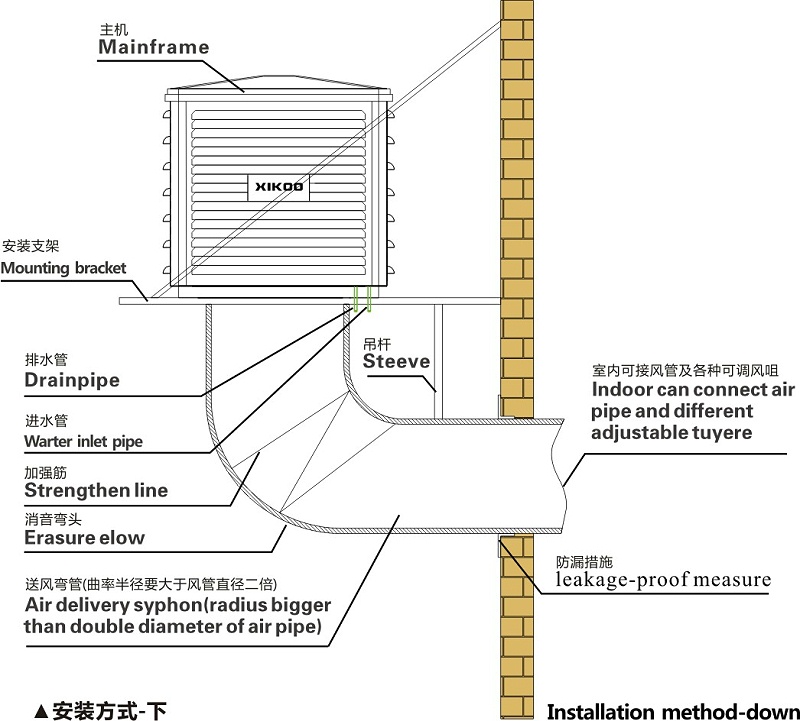

下出風安裝示意圖

Downward-Installation method
